Stainless Steel Tile Positioning Ruler – Adjustable Drill Guide & Measuring Tool for Ceramic, Marble & Wall Tile

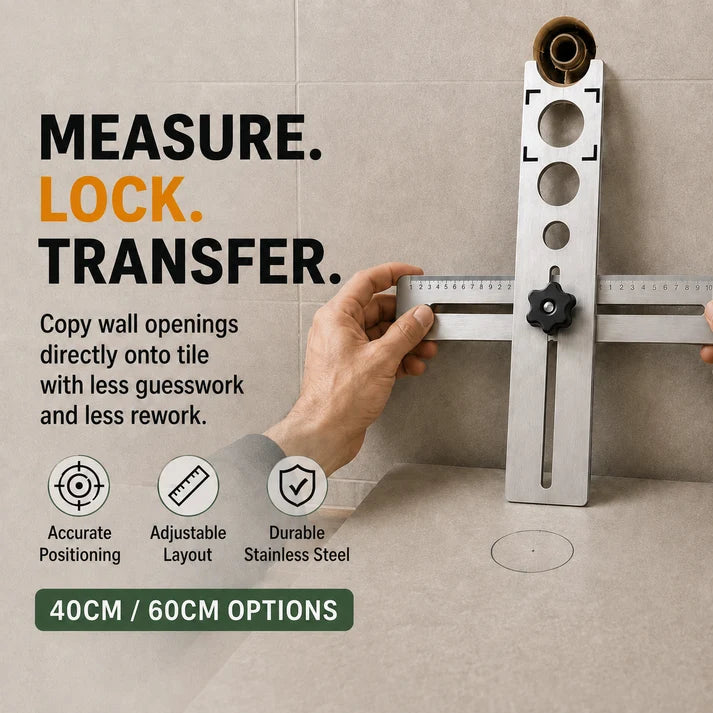

— MEASURE · LOCK · TRANSFER —
Stainless Steel Tile
Positioning Ruler
Transfer wall openings and fixture positions onto tile with less measuring, less guesswork and more confident layout. Adjust the ruler, lock the position and carry the reference directly to your tile.
Accurate
Positioning
Adjustable
Layout
Knob
Locking
Stainless
Steel
— STOP MEASURING THE SAME POSITION AGAIN & AGAIN —
Less Guesswork. Less
Rework.
Repeated tape-measure calculations can introduce extra marks and more opportunities for error. The positioning ruler helps you capture the real opening position and transfer it directly.
Capture the Real Position
Match the template directly to the existing pipe or fixture opening instead of relying only on written measurements.
Reduce Extra Marks
Lock the measured layout before moving to the tile, helping keep the marking process cleaner and easier to follow.
Cut With More Confidence
A direct positioning reference helps reduce second-guessing before drilling or cutting the tile.

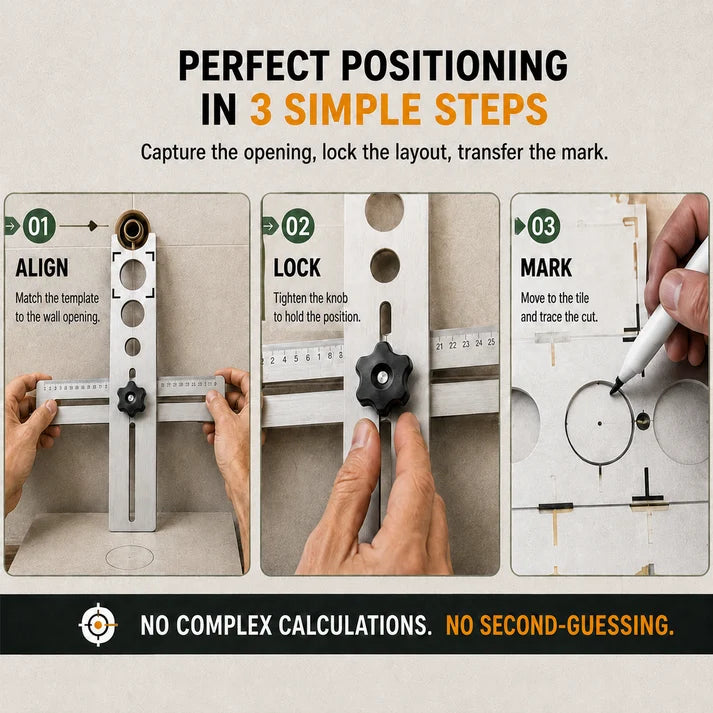

— SIMPLE WORKFLOW —
Perfect Positioning in 3
Simple Steps
Capture the opening, secure the layout and transfer the mark without turning every installation into a measuring exercise.
1Align
Match the appropriate template opening with the wall pipe fitting or reference point.
2Lock
Tighten the center star knob to hold your horizontal, vertical and angle settings in place.
3Mark
Move the locked guide onto the tile and trace the required opening before cutting or drilling.

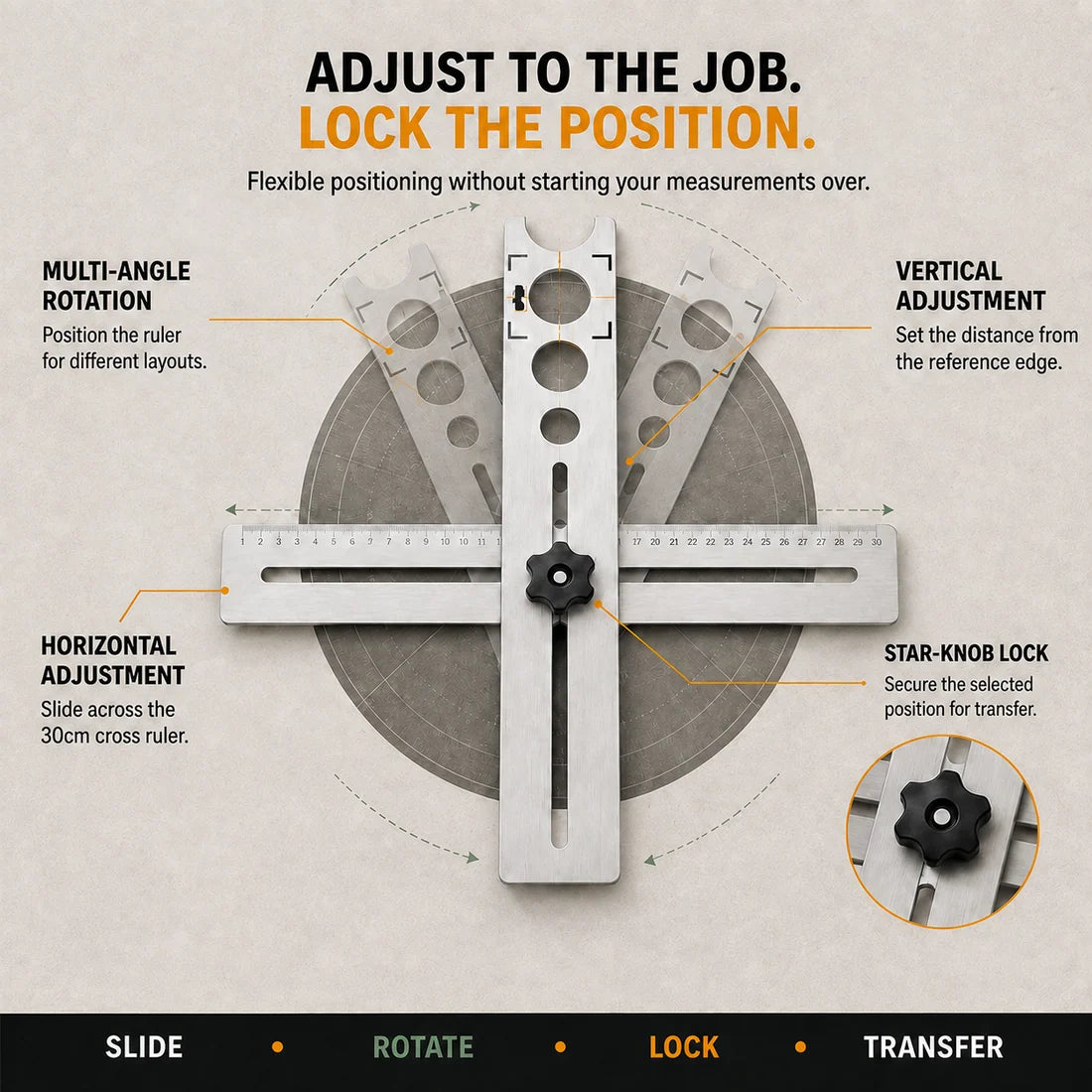

— FLEXIBLE POSITIONING SYSTEM —
Adjust to the Job. Lock
the Position.
Slide, rotate and reposition the guide to match different installation layouts, then secure the setting before transferring your mark.
Horizontal Adjustment
Slide across the 30cm cross ruler to match different distances from the reference point.
Vertical Adjustment
Reposition the main ruler to match the required distance from the tile or installation edge.
Rotate & Lock
Rotate for different layouts and tighten the star knob to hold the selected position during transfer.

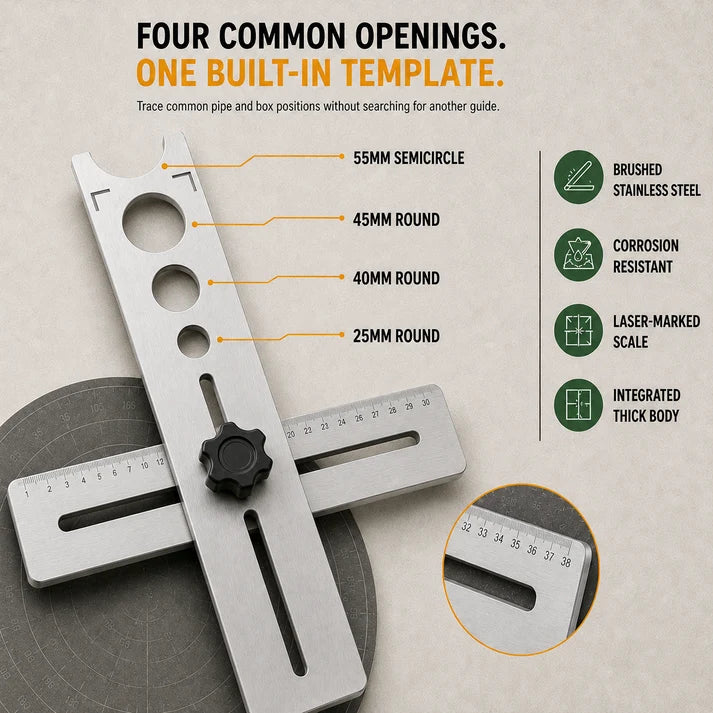

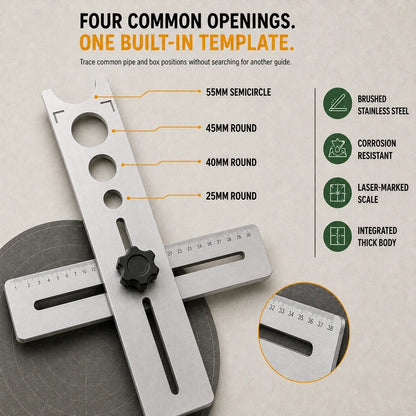

— BUILT-IN OPENING REFERENCES —
Four Common Openings.
One Built-In Template.
The main ruler combines one 55mm top semicircle with three round openings so common pipe and fixture positions can be traced without reaching for another guide.
55MM
Top Semicircle
45MM
Large Round
Opening
40MM
Medium Round
Opening
25MM
Small Round
Opening
Brushed Stainless Steel
Solid metal construction designed for repeated measuring and layout work.
Clear Measuring Scale
Measurement markings provide a clear visual reference while adjusting the cross ruler.
Secure Positioning
Central knob locks the ruler settings before the position is moved to the tile.
— ONE TOOL · MULTIPLE PROJECTS —
Built for Real
Installation Work
Use it when planning openings and fixture locations across bathrooms, kitchens, plumbing work and tiled renovation projects.
Bathroom
Kitchen
Pipe
Openings
Fixture
Layout
Wall &
Floor Tile
Suitable as a positioning and marking aid for ceramic tile, porcelain, marble, glass and stone projects when used with the appropriate cutting or drilling equipment for the material.

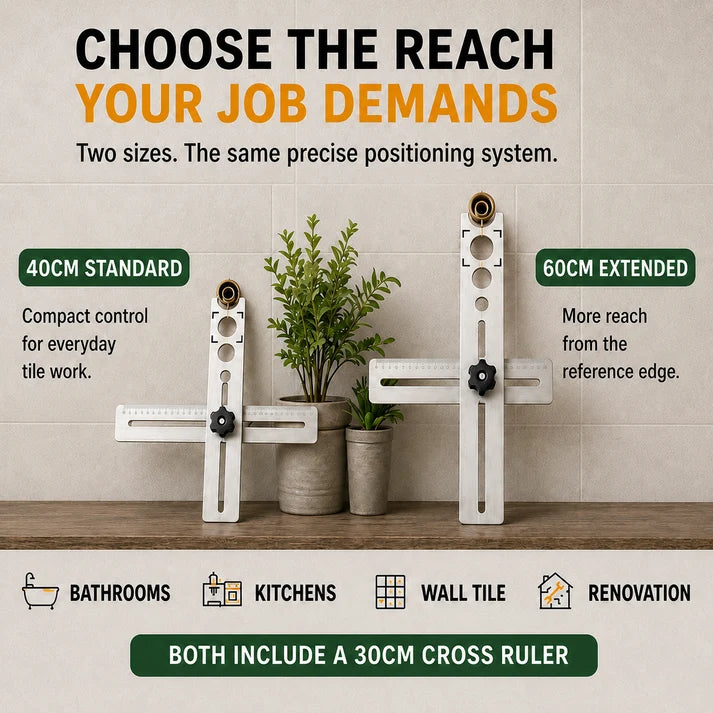

— CHOOSE THE REACH YOU NEED —
Two Sizes. The Same
Positioning System.
Choose a compact 40cm main ruler for everyday tile work or a longer 60cm version when the opening sits farther from the reference edge.
40CM
Standard
Compact reach for controlled bathroom, kitchen and everyday wall-tile layout work.
60CM
Extended
Extra reach when the fixture or opening sits farther away from your tile reference edge.
Both size options use a 30cm / 300mm cross ruler. Select your preferred main-ruler length according to the reach required for your installation.

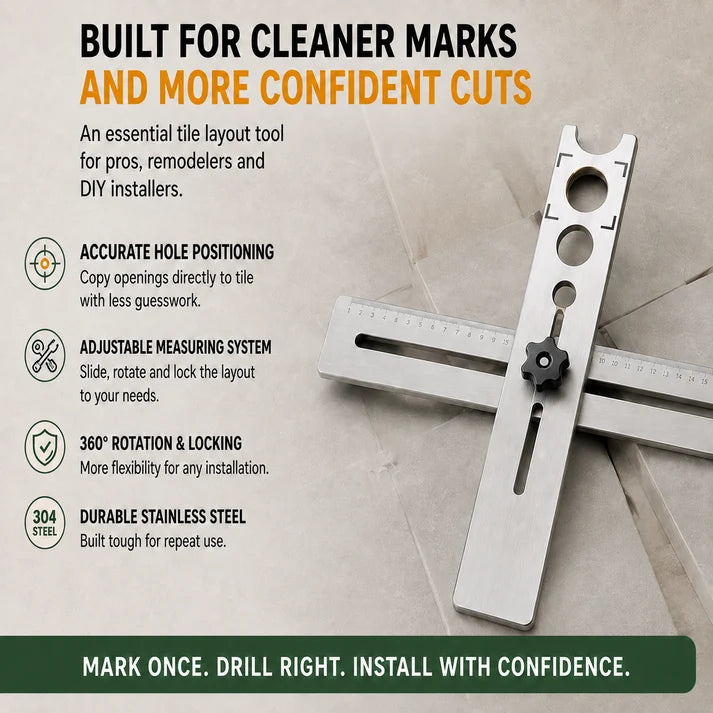

— DESIGNED FOR CLEANER LAYOUT WORK —
Mark Once. Cut With
More Confidence.
A rigid stainless steel body, adjustable ruler system and lockable layout give professionals, remodelers and DIY installers a practical way to transfer opening positions onto tile.
Accurate Position Transfer
Copy the existing opening position instead of relying only on separate distance calculations.
Adjustable Measuring System
Slide, reposition and rotate the ruler to match different installation layouts.
Durable Stainless Steel
Metal construction is designed for repeated professional and DIY measuring work.
— PRODUCT DETAILS —
The Measurements That
Matter
This tool is designed for positioning, measurement transfer and marking. Drilling and cutting should be performed using appropriate tools and methods for the tile or surface material being worked on.
— FREQUENTLY ASKED QUESTIONS —
Everything You Need to
Know
QWhat is this tool used for?
It is designed to capture the position of existing wall openings, pipes and fixtures and transfer that layout onto tile before drilling or cutting.
QWhat opening templates are built into the ruler?
The main ruler includes a 55mm top semicircular opening plus 45mm, 40mm and 25mm round openings.
QCan the ruler rotate?
Yes. The ruler can be repositioned at different angles around the center connection, allowing more flexible layouts before the star knob is tightened.
QHow does the locking knob work?
After the required horizontal, vertical and angle position is set, tighten the center star knob to help hold the ruler configuration while transferring the position to the tile.
QWhat is the difference between the 40cm and 60cm versions?
The 40cm version provides a more compact reach for everyday layout work, while the 60cm version extends farther from the reference edge. Both use the same adjustable positioning concept.
QIs this the tool that actually drills the tile?
No. This is a positioning and marking guide. Use the appropriate drill, hole saw or cutting tool for the surface material after the opening has been marked.
